This article was adapted for drivers and tuning professionals in the United States by Viezu USA. Measurements are shown in US units alongside the originals.

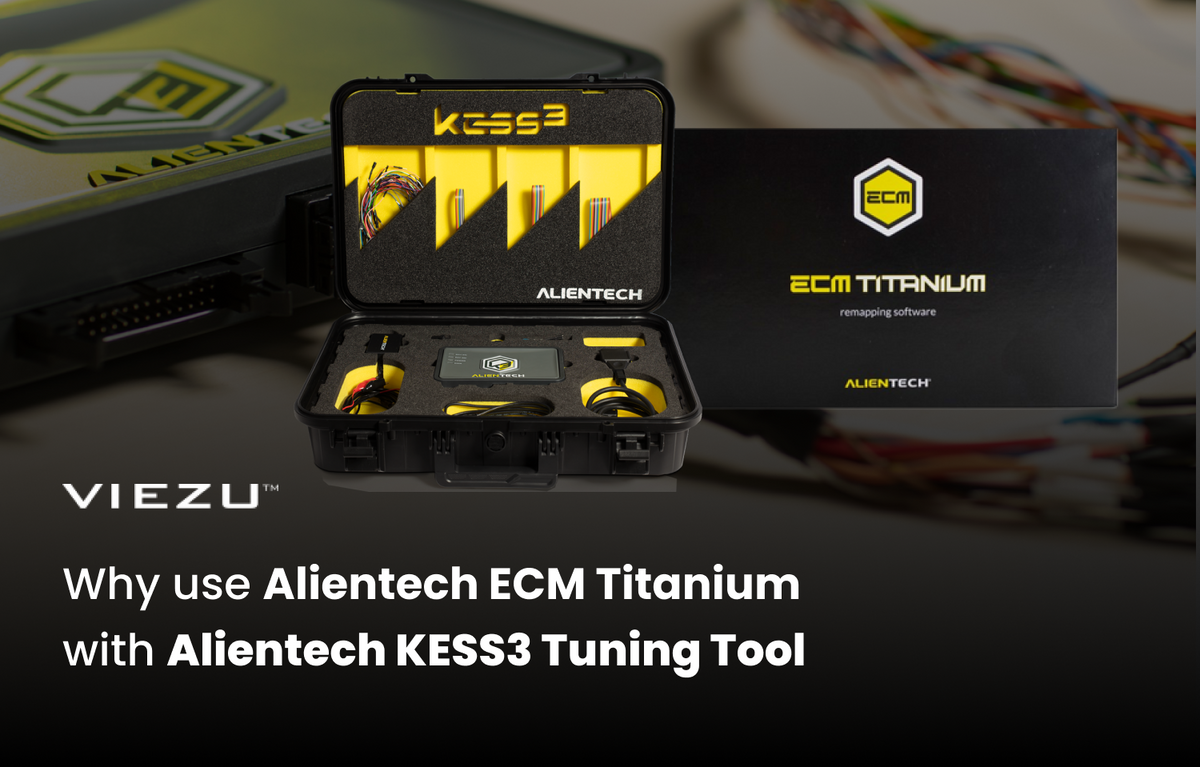

Put Alientech's KESS3 tool together with Alientech ECM Titanium tuning software and you get a seriously capable tuning workflow. Here's why combining them is a smart move for precise, dependable results.
KESS3 is Alientech's newest tool, the product of more than three decades of tuning experience. It merges the functions of the earlier KESSv2 and K-Tag into one flexible device, so you can work on ECUs (engine control units) and TCUs (transmission control units) without juggling several tools.
On top of reading and writing files over OBD, bench or boot, KESS3 now offers "Dyno Drive" and DTC management:
- Dyno Drive measures power and torque on the road, essentially an in-car dyno for checking your results.
- DTC management lets KESS3 read and clear SAE diagnostic trouble codes, so you don't need a separate scan tool to check the vehicle's health before tuning.
Master or Slave: Choosing for Your Business
When you buy an Alientech KESS3, you pick a Master or Slave version. A Slave is tied to a particular Master: it reads and writes files, but they're encrypted, so you send the original to your Master file provider, who modifies it and sends it back.
Slaves are linked to a Master but not stuck forever. You can upgrade to Master later, or move your Slave to a different Master tuner if you change file provider (with the provider's permission).
A Master gives you full control. It reads and writes unencrypted files, so you can make your own changes in ECM Titanium. It's the route for experienced tuners with the knowledge to develop their own files who want total independence.
The key point here: Slave tools are great for deploying files, but only a KESS3 Master reads raw, unencrypted files, and those are the only files ECM Titanium can fully open and edit, freeing you from outside file providers.
KESS3 is also fully configurable online. Start with a Slave or a specific protocol pack (say Car/LCV), and you can upgrade to Master or add Bike/Marine protocols instantly in the software, no new hardware needed. The tool grows with your business.
The Return on KESS3 Plus ECM Titanium
Going from a Slave to a KESS3 Master with ECM Titanium changes how you make money. Instead of paying a master tuner per file, which eats into margins, you invest your time in editing your own. Over time, losing those file fees raises your profit on every vehicle and the software pays for itself.
Editing calibrations, not raw hex
ECM Titanium is built around calibration intent, not just changing a file. Instead of showing raw hexadecimal, its drivers translate ECU data into meaningful calibration parameters with the right units, axes and scaling.
That matters because modern ECUs use complex torque-based strategies in which maps interact across many operating conditions. Wrong scaling or unit interpretation in a raw editor can quietly ruin a tune. Working with defined drivers means you can change values knowing the ECU will read them as intended.
Controlled editing for safety
ECM Titanium deliberately restricts maps its drivers haven't fully defined. That may feel limiting next to freeform editors, but in a professional setting it's a big safety plus.
It stops you accidentally editing diagnostic or monitoring maps and cuts the risk of unintended side effects. For pro shops, that consistency and reliability usually beat unrestricted access to every byte.
Why ECM Titanium and KESS3 Belong Together
Built for calibration accuracy, not just convenience
Yes, it's handy that both come from one manufacturer. But the real reason pros pair them is that the whole workflow is designed around calibration accuracy rather than raw file access.
Unlike generic hex editors or loosely connected tools, ECM Titanium drivers are made to match files read by KESS3, so data interpretation, axis scaling and checksum handling are right from the start. That tight integration lowers the risk of misread maps or wrong scaling that can creep in when you mix third-party tools and editors.
Protocol awareness in the hardware
KESS3 does more than read and write ECUs and TCUs. It's fully protocol-aware, identifying the ECU family and sub-variant, which memory regions are safe to access, and the correct write conditions and security sequences.
That's especially important on modern ECUs like Bosch MD1, MG1 and Continental units, where the wrong memory access can cause immobilization or permanent ECU damage. Paired with ECM Titanium, it keeps the file you're editing in exactly the structure the ECU expects when you write it.
File compatibility through Virtual Read (VR)
One of the biggest technical advantages is Alientech's Virtual Read system. When KESS3 does a Virtual Read, the original file comes straight from Alientech's database and is guaranteed to match an existing ECM Titanium driver.
That removes a classic pro tuning risk: editing a file that looks right but has subtle software differences causing driver mismatches, missing maps or wrong axis definitions. For busy shops, it slashes troubleshooting time and boosts first-time-right rates.
Step by Step: A Real Tuning Job
To show how it all fits together, here's a common job: a Stage 1 tune on a BMW 320d (G20) with a Bosch MD1 ECU.
Step 1: Read the original file with KESS3
Connect to the vehicle and pick the specific BMW protocol in KESS3. On this ECU, you might choose Bench Mode for a fast, safe connection without opening the case.
Step 2: Edit the maps in ECM Titanium
Open the saved original in ECM Titanium. On a modern Bosch MD1, torque control runs through several interdependent maps rather than one limiter.
ECM Titanium's drivers group the related torque, air load and pressure limiters together. That structured view lets you rebalance the calibration without freeing torque in one place while it's still capped in another, helping avoid torque intervention, uneven power delivery or transmission protection kicking in under load.
Step 3: Write the tuned file with KESS3
With your modified file finished, select it in KESS3 and follow the prompts to write it back to the ECU. It's the reverse of the read, and the Alientech software handles it smoothly.
Professional Training
Good training teaches you to use the tools properly, helps you decide which tool and software suit you, and makes sure you understand how your file edits affect the vehicle's performance. As Simon White has said in our webinar series, "understanding the why behind remapping" is vital: it lets you make informed decisions, troubleshoot more easily because you understand the data, and avoid costly mistakes.
See the Viezu Technical Academy.
Remote Tuning With Powergate 4
For tuners who want to offer remote tuning, Alientech has also launched Powergate 4, which we covered in our interview with Alientech UK. The Bluetooth-enabled Alientech Powergate 4 holds up to four modified tuning files, and your customer can load a map to their vehicle from a phone app, giving you another revenue stream alongside bench, boot and OBD work.
Why Viezu
For more than 15 years, Viezu has helped professional tuners worldwide learn, build and grow their businesses, from supplying genuine tools and software to teaching the technical skills to tune safely, efficiently and effectively.
Our online tuning file portal is open 24 hours a day, 7 days a week, and dealers get access to our professional file writing team for expert guidance and live tech support when needed. All our custom files are thoroughly tested and proven for your confidence and your customers', and we back our tools with a 30-day money-back guarantee.
A reliable tech support team is invaluable: when a tough tune or unexpected problem comes up, expert advice is a call away, saving time and money and protecting your reputation.
What's the KESS3 Tuning Business Start-Up Kit?
A Viezu exclusive, it's an all-in-one package designed to give you everything needed to launch and run a business tuning cars and light commercial vehicles, combining essential hardware, safety equipment and training resources. Learn about the KESS3 Tuning Business Start-Up Kit
ECM Titanium and KESS3 FAQs
How does KESS3 differ from KESSv2 and K-Tag?
KESS3 combines the KESSv2's OBD tuning and the K-Tag's bench and boot tuning in one device, so you no longer need separate tools for different jobs and work more efficiently.
Do I need internet access to use KESS3 and ECM Titanium?
Yes. Alientech Suite, the software that runs KESS3, needs a stable internet connection to reach Alientech's servers for protocols and updates.
What if my KESS3 subscription lapses?
KESS3 keeps working on the protocols you already have, but you lose Virtual Read, tech support and any new vehicle updates or protocols.
What's a checksum, and why does it matter?
A checksum is a string of numbers and letters that works like a digital fingerprint for a tuning file. The ECU uses it to confirm the data is correct and uncorrupted; if it's wrong after a file is modified, the ECU rejects the file and the vehicle won't start. Software like ECM Titanium recalculates the correct checksum automatically to prevent that.
About the Author
Paul Busby is CEO of Viezu Technologies, with more than 35 years in the tuning industry. He regularly records webinars on professional tuning tools and software for people opening their own tuning business or building their skills as a hobby.
